Force Infield Grader
Big Capability for Small Machines
Watch Now.
Overview
Infield Grader for your Mower

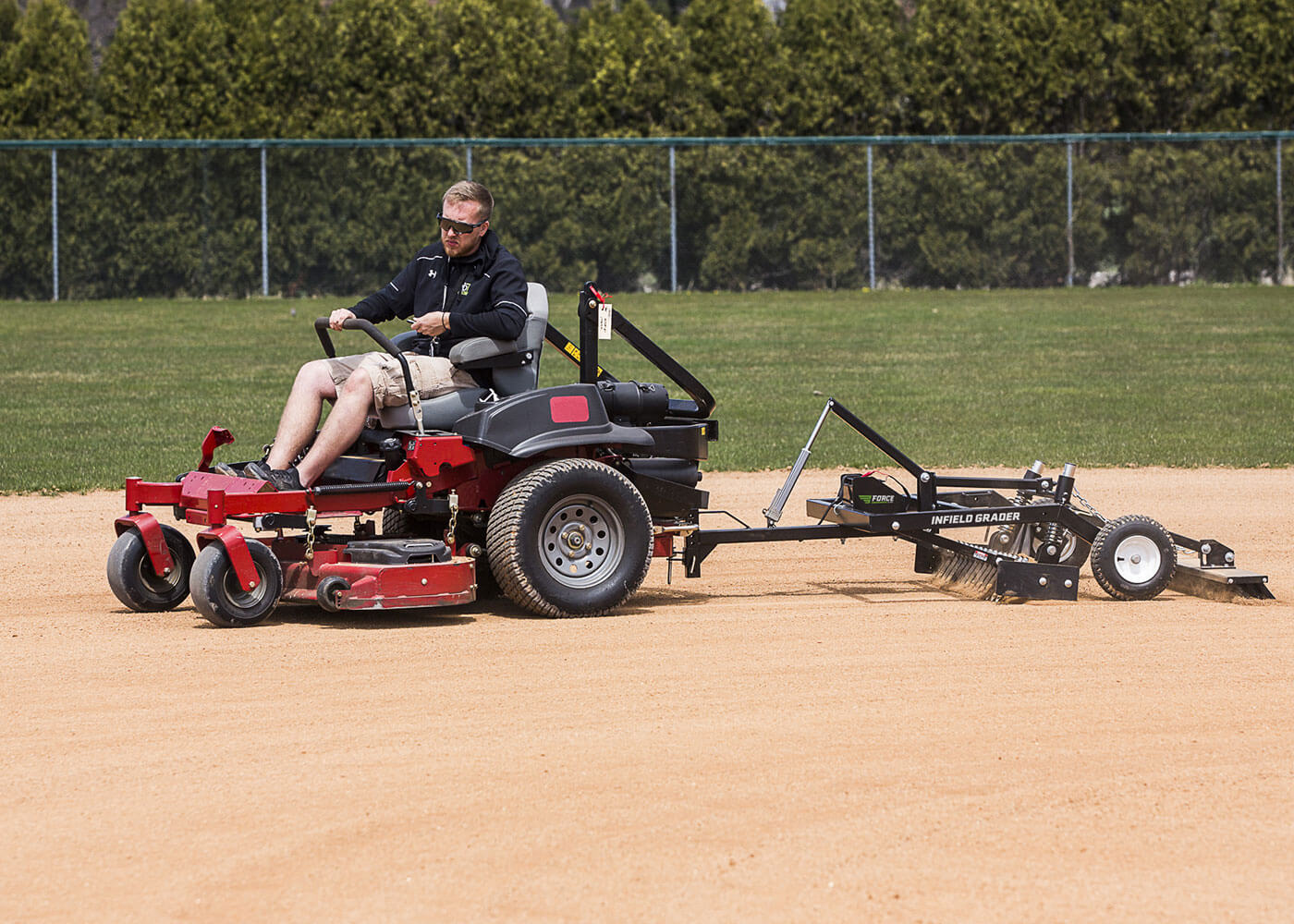

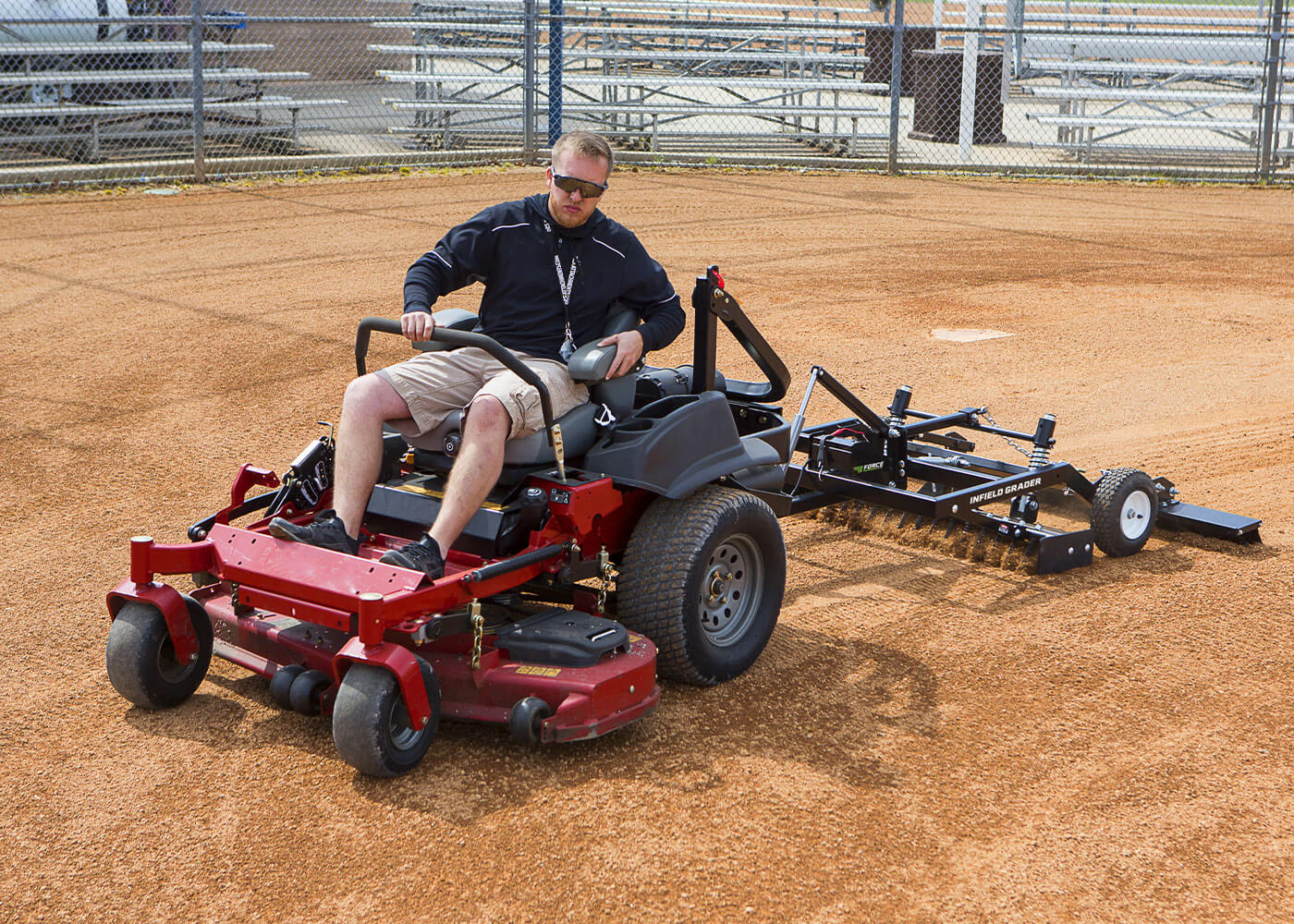

The ABI Infield Grader is a performance-oriented, yet cost effective, infield maintenance groomer designed for use behind a riding mower or zero-turn with a rear hitch. With a Force Infield Grader, every baseball and softball league can now afford safer and more playable infields.
Features
Industry Leading Technologies

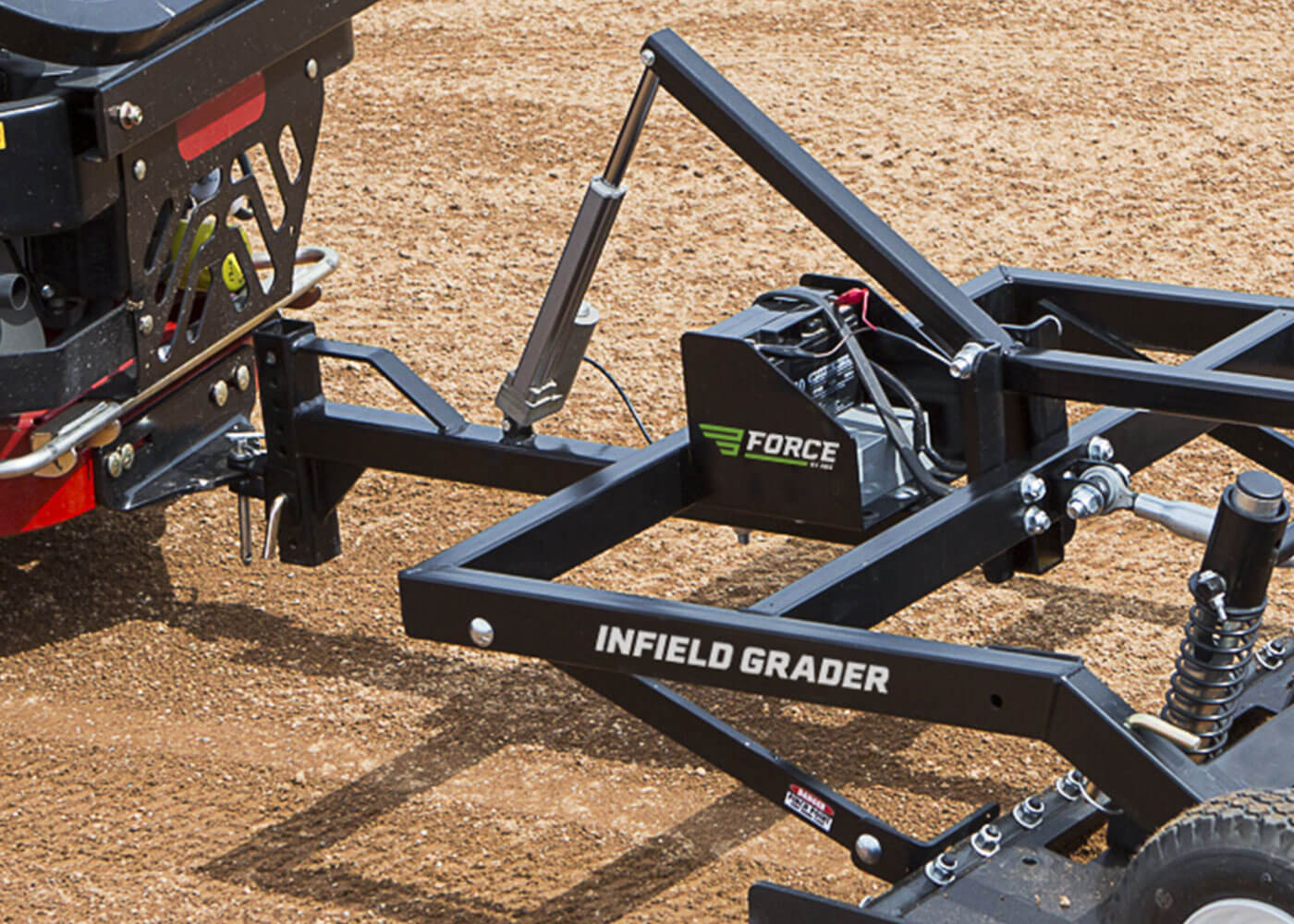

In grading, the heavier the implement, the better the grading result. However, when the tow vehicle is a traction limited mower, too much weight will cause the operator to get stuck with spinning tires. So, instead of adding static dead weight via cinder blocks, a water tank, or other common methods, “Controlled Force” technology adds active “On-The-Go Weight Control,” which enables the operator to transfer weight from the tow vehicle to the Infield Grader as more or less weight is needed for the job!
The ABI Infield Grader comes standard with an electric actuator. The ABI actuator is commercial grade, has an 8″ stroke, and is weather sealed for longevity. Using the wireless electric actuator’s downward force on the springs and grading box, the hitch of the Infield Grader tops out against the mower using the weight of the operator and mower to put applied force to the loosening and grading action. The actuator can be connected to your mower's battery or to an onboard battery(onboard battery not included).

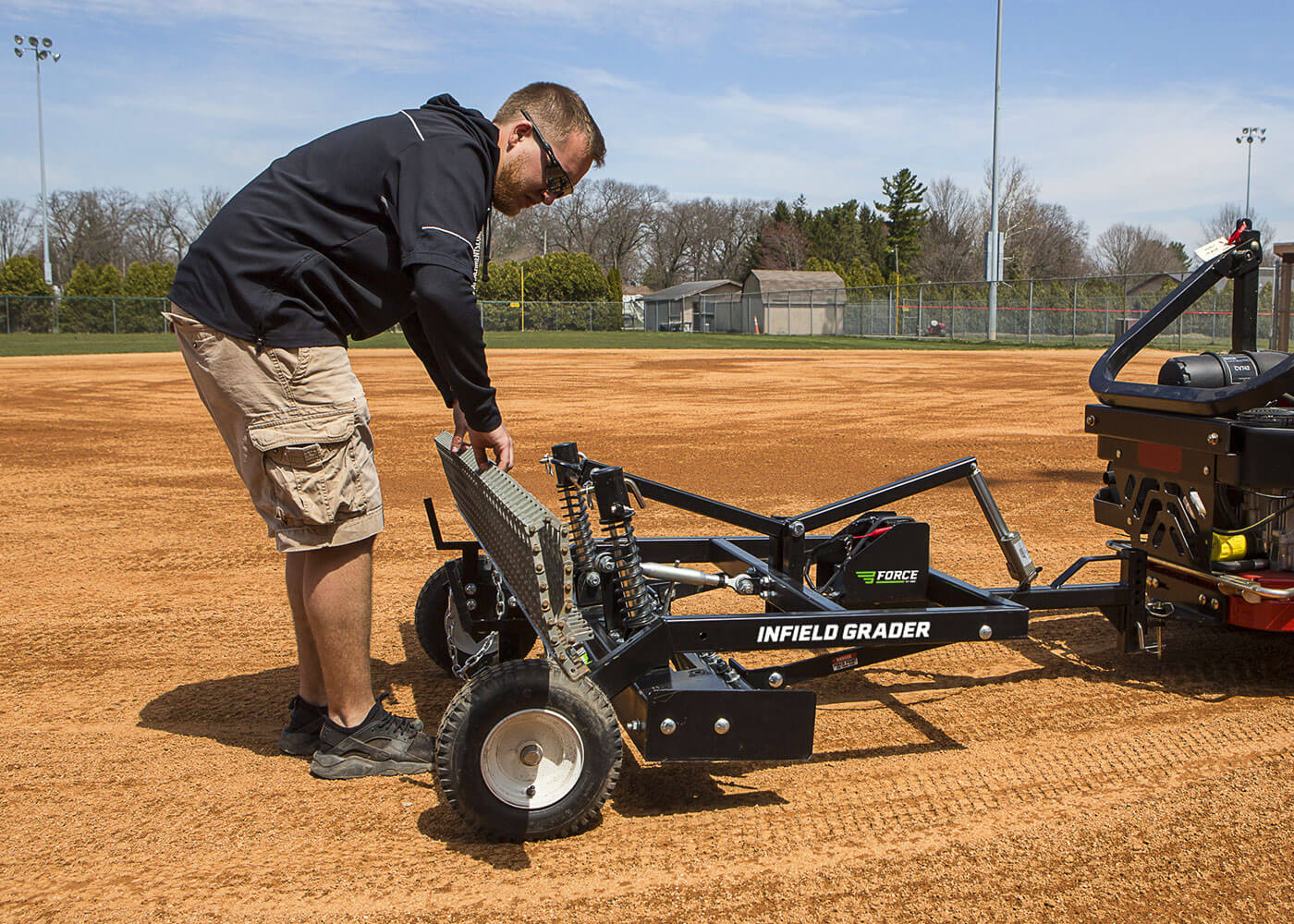

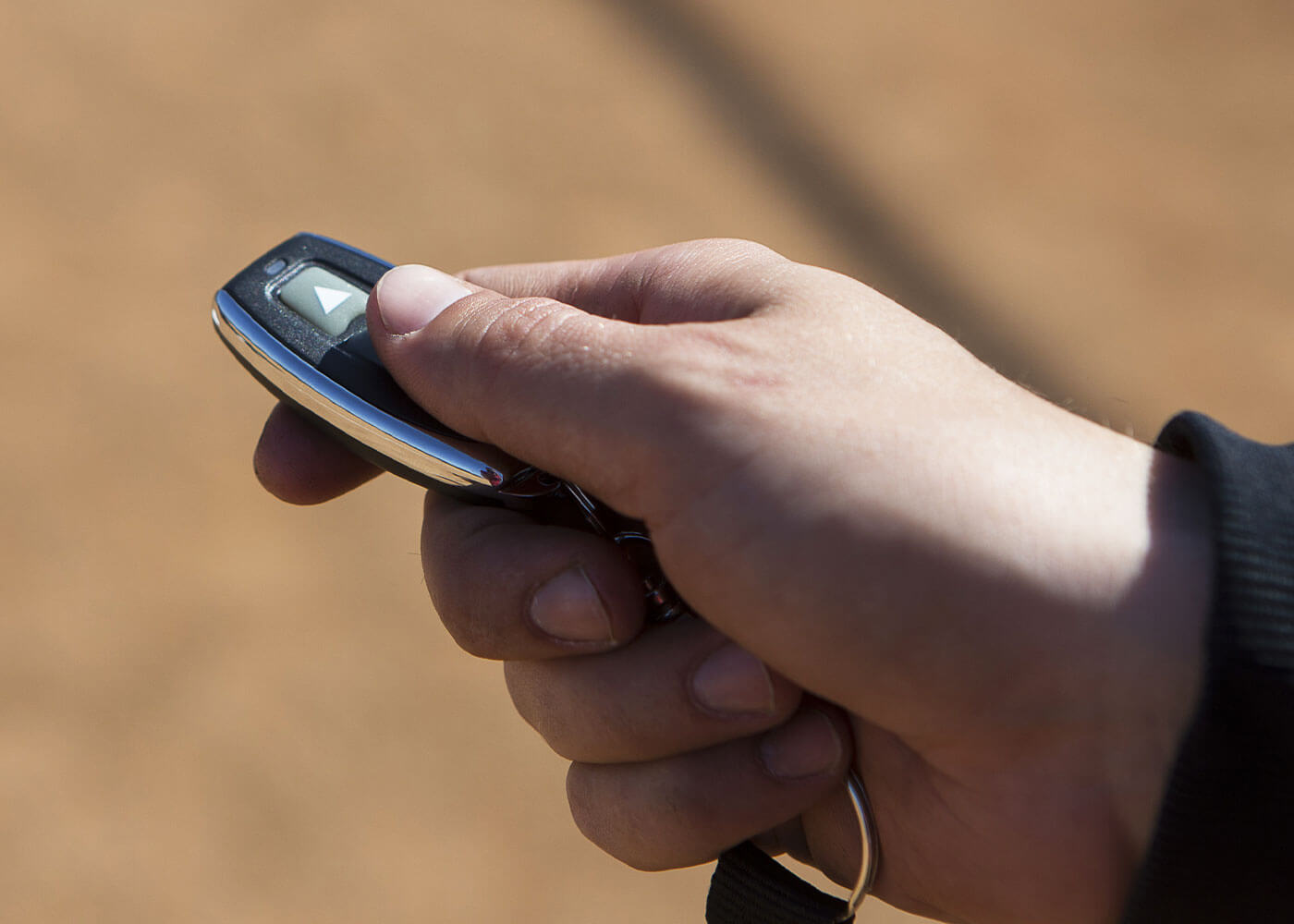

Travel time between fields is a breeze with the set of wheels & finish attachment carrier. The wireless actuator provides the ability to raise the tool out of play, allowing for ground clearance to move from field to field. Roll up your mat and place it in the carrier or watch the broom raise off the ground as you raise the tool with the actuator.
Attachments
Mini-Box Grader
With wireless control of the electric actuator powered “Controlled Force Technology,” the operator can quickly and effectively use the mini-box to spread and level loosened material and collect loose debris & rocks with precision and ease. It can effectively reset the grade around home plate, sliding areas, along base paths, and warning tracks.

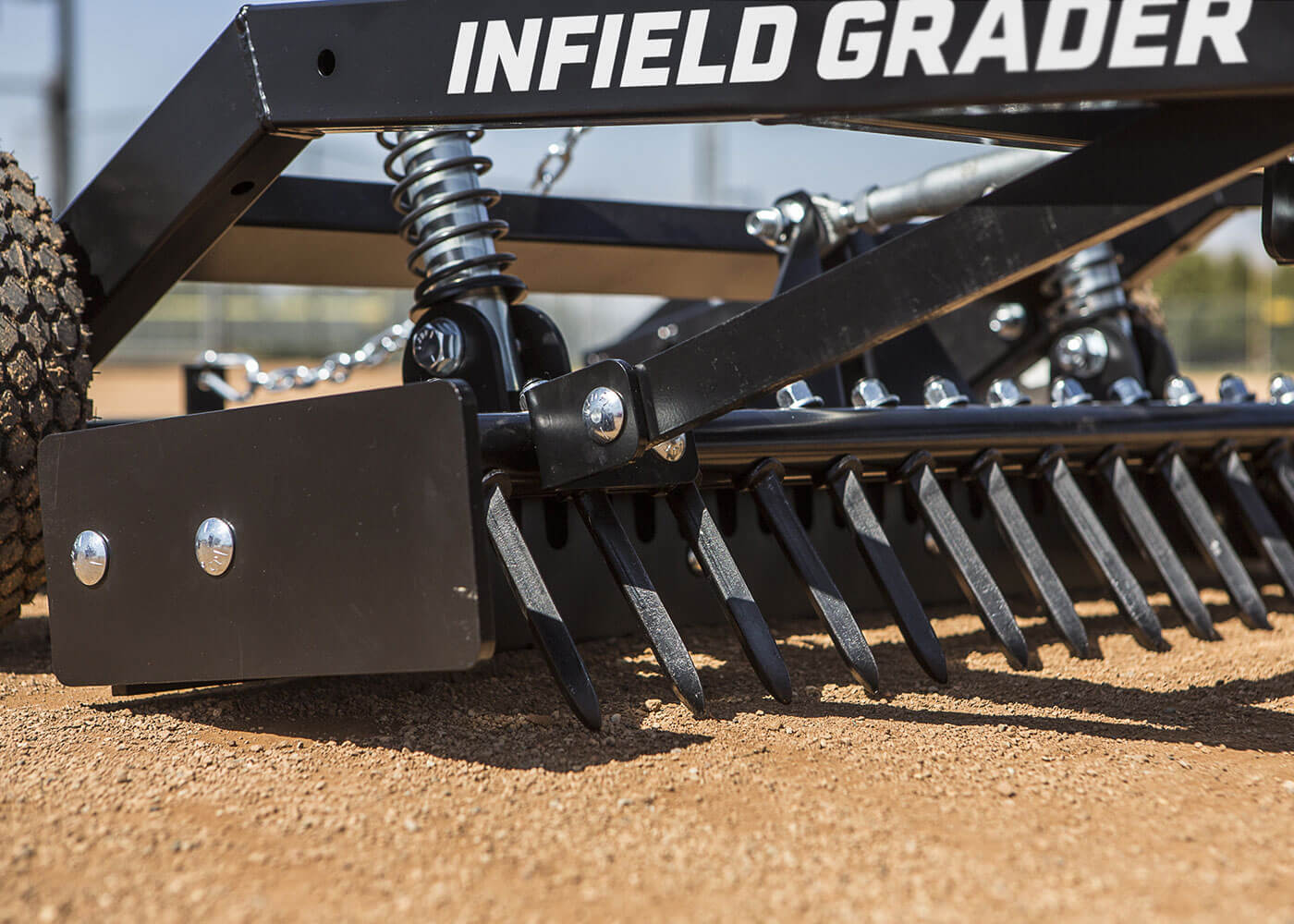

Loosening Teeth

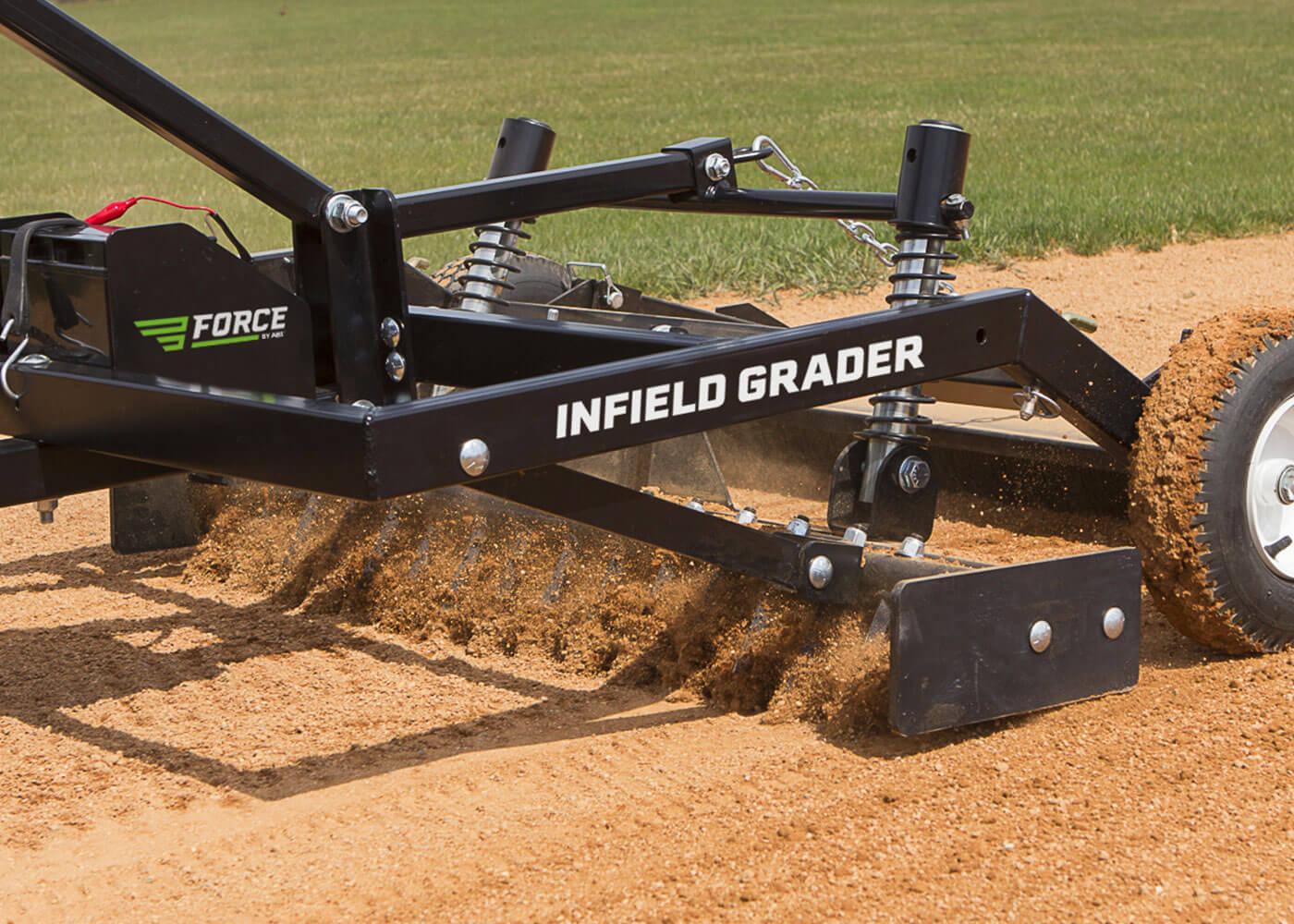

The loosening teeth ensure the surface has been properly decompacted to level. The adjustable and replaceable teeth can loosen the infield skin from 0″ up to 1-3/4″ deep depending on the application and conditions. The operator may lock the depth in place and remove every other tooth as desired to accommodate material flow.

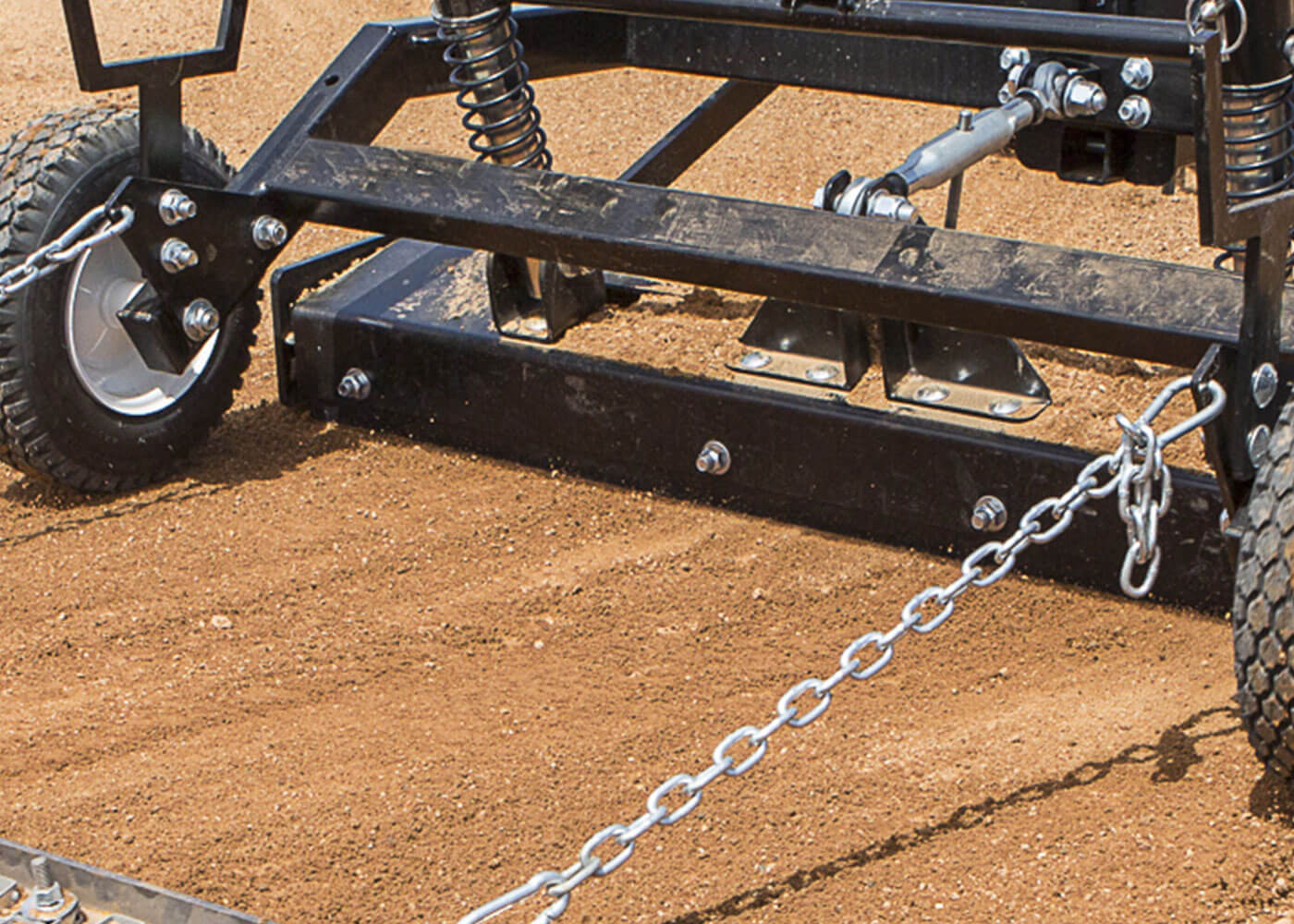

Reversible Blade Edge
The 1/2″ thick grading blade is shipped with a smooth edge for precision grading, however it may be flipped over to a serrated edge for more aggressive action. The smooth edge is best for infield mix leveling, whereas the serrated edge is best for gravel and other more coarse materials.
Optional Attachments
-
Infield Grader Fine Finish BroomThe available Fine Finish Broom is 6′ wide and offers 3 replaceable rows of bristles. The Fine Finish Broom creates a pristine finish in both high and low moisture conditions. The broom can also raise and lower with the grader box, there’s no need to manually lift it off the ground for transport.
-
Infield Grader XD Flexible Drag MatThe XD Flexible Steel Mesh Drag Mat is 6′ wide by 1.5′ long and is the most extreme duty drag mat on the market. It is ideal to finish and reset the surface to be ready for play after maintenance work. The steel mesh is made of extremely thick rust resistant galvanized steel. The rods are an impressive 6 Gauge and the ends are welded to protect the edges from fraying as it hits bases, fencing and other obstacles.
Gallery
Videos

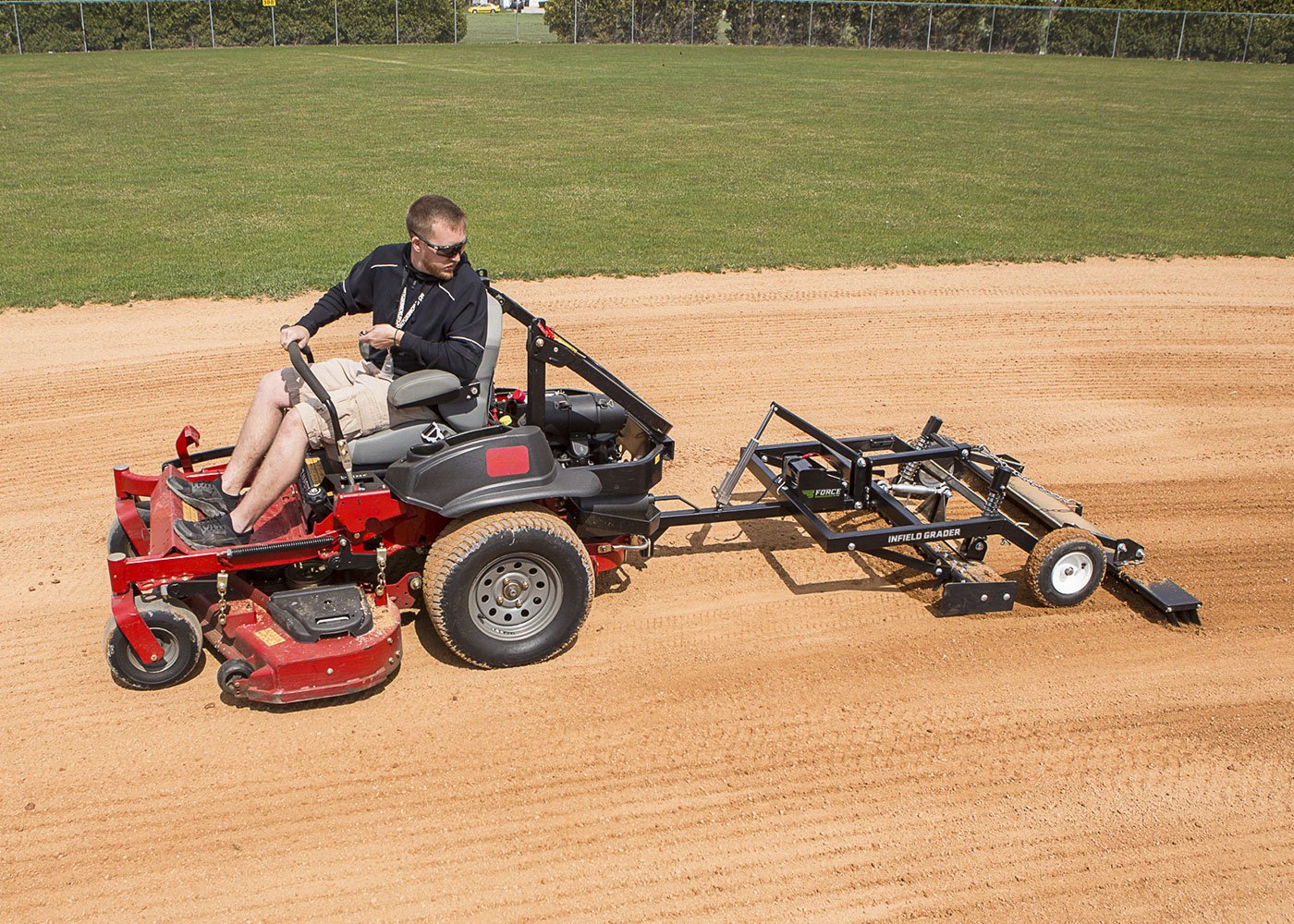

The Force Infield Grader is a performance oriented, cost effective, infield maintenance groomer designed for use behind a riding mower or zero-turn with a rear hitch.
Manufactured Right Here
You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America. That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should.
36-Month Warranty
We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 36-month limited warranty on this product. See warranty documentation for details.
Reviews
Write A Review
-
This is a must have for transforming your infield into an outstanding surface. We have 6 fields that we play on and it has made a tremendous difference in smoothing all of them out. We also spend money on turface every year, replenishing what has compacted or washed away. After using this on the fields for the first time, it has pulled so much back up that it almost looks like we added more this year, but we haven’t. This tool has more than paid for itself and I would highly recommend to anyone wanting a smooth, level playing surface. As a bonus, it can be used as a gravel grader and I was able to transform our gravel road, removing pot holes and low spots within a few hours. I can’t speak to the longevity yet, but it appears to be well built and customer service has been outstanding.
Chris S
-
Purchased the ABI infield grader this spring and I could not be more satisfied with the job it does on our infield. Very solid construction so I know it will last for years. I highly recommend this unit to anyone looking to improve their infield and make the field maintenance easier.
Don Henderson
Specifications
Vehicle Type | Mower, Lawn Tractor, Zero-turn |
Min. Power | 14hp, 300cc |
Max. Power | 27hp, 550cc |
Min. Vehicle Weight | 350 lbs |
Max. Vehicle Speed | 5 m.p.h. |
Base Unit Weight | 283 lbs. |
Shipping Weight | 250 lbs. |
Unit Dimensions | 54"W x 70"L x 24"H |
Shipping Dimensions | 56"W x 56"D x 25"H |
Working Width | 48" |
Hitch Type | Tow Behind - Adjustable Pin Hitch |
Tire Size | 12" Diameter x 4" Width x 7" Rim |
Tire Type | Air Filled |
Grading Width | 48" |
Cutting Edge | Serrated or Solid (Replaceable) |
Type | Rigid Shank - Replaceable |
Scarifying Depth | 0" to 1-3/4" |
# of Scarifiers | 15 |
Electric Actuator | Yes |
Wireless Remote | Yes |
Controlled Force | Yes |
Coiled Spring Action | Yes |
Actuator | Wireless Remote Electric Actuator |
Battery & Charger | Not Included (Not required) |
Direct Wire To Vehicle | Yes (Only if no battery) |
Recommended Battery | UB12180 - 12V 18AH |
Recommended Charger | 12V Charger / Maintainer |
Batteries/Chargers | Buy Online |
Ball Diamond Use | 36-month |
Commercial Use | 12-month |
Attach Match Guarantee | 30 Day |
Assembly Required | Yes |
Assembly Time | 30 - 60 min |
XD Drag Mat Unit | 72"W x 18"L x 1"H, 45 lbs. |
XD Drag Mat (Installed) | 72"W x 109"L x 24"H |
Finish Broom (Unit) | 72"W x 12"L x 8"H, 43 lbs. |
Finish Broom (Installed) | 72"W x 81"L x 24"H |
