Stand-On Laser Grader
Unmatched Precision
Request A Quote
Control Your Drainage and Prevent Washout
The Z-23 is the world’s first and only stand-on zero-turn laser grading machine, with accuracy plus-or-minus a width of an inch(0.125 inch, 3.175 mm). This patented, fully automatic laser grading system delivers unprecedented affordability and finish-grade accuracy to the sports turf and flatwork industries.
![force_laser_grader_safe_ground_image force_laser_grader_safe_ground_image](https://www.forcebyabi.com/hubfs/force_laser_grader_safe_ground_image.jpg)

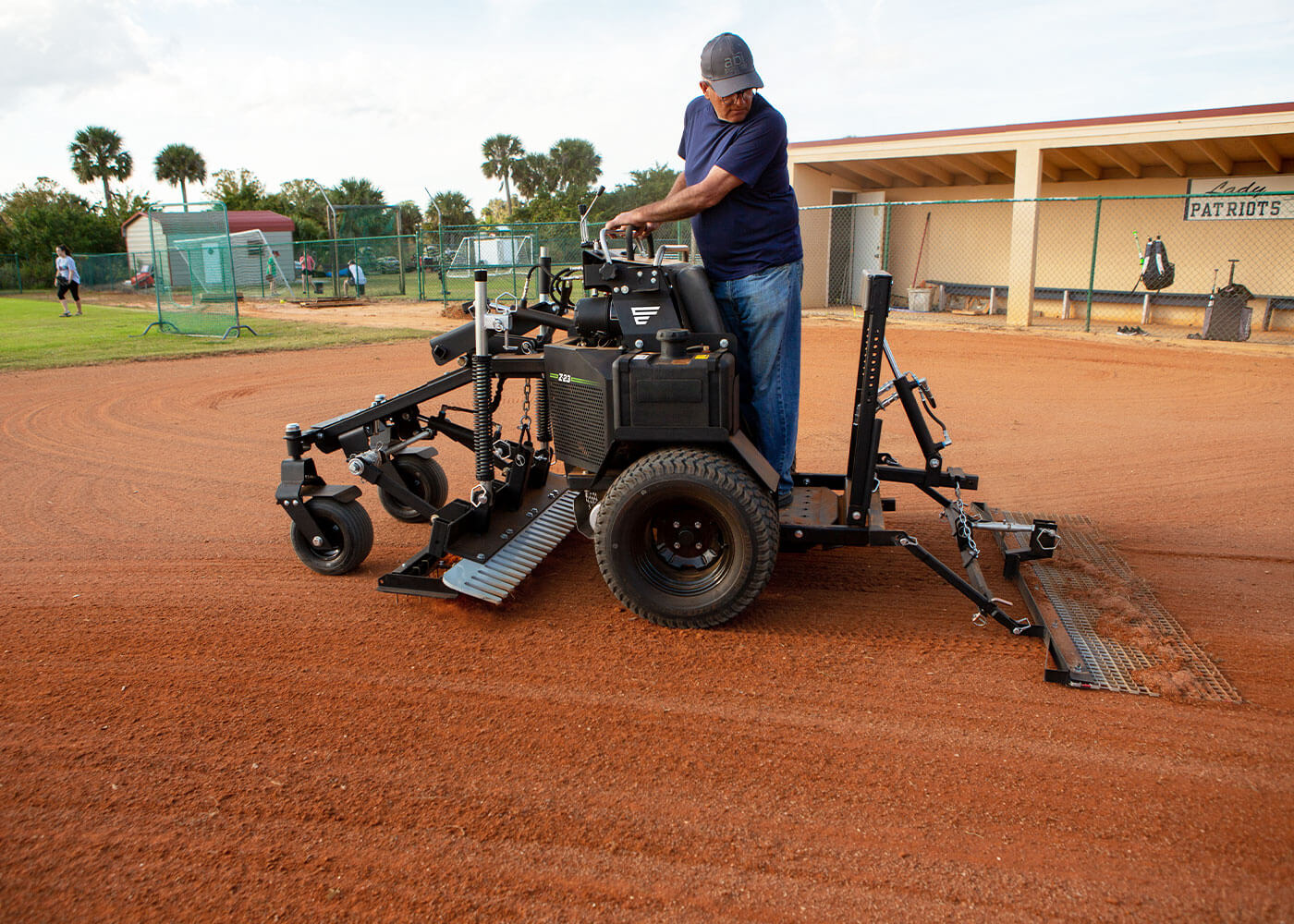

Safe Ground
Safety of the players is paramount, from little league all the way up to majors. Prevent uneven, inconsistent, or unsteady ground by keeping your field level. When the players can trust the skin, the game is better for everyone.
![force_laser_grader_game_time_image force_laser_grader_game_time_image](https://www.forcebyabi.com/hubfs/force_laser_grader_game_time_image.jpg)

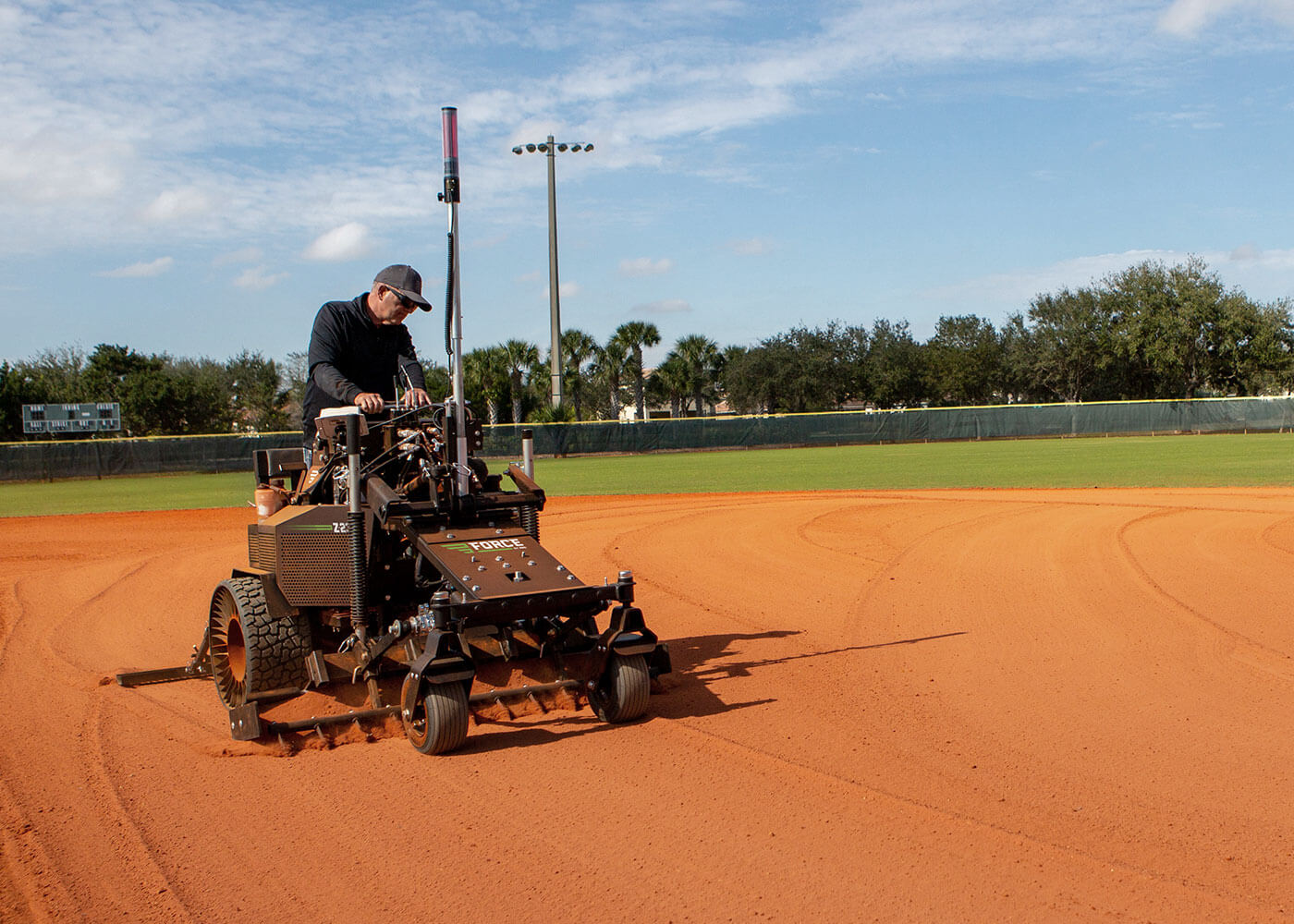

Game Time
Keep your field game-ready. With precision laser-grading you can have the confidence that when it’s time for a game, your field is playable. Quickly smooth over rain or weather damage, and get your field back to tip-top shape.
![force_laser_grader_make_the_field_last_image force_laser_grader_make_the_field_last_image](https://www.forcebyabi.com/hubfs/force_laser_grader_make_the_field_last_image.jpg)

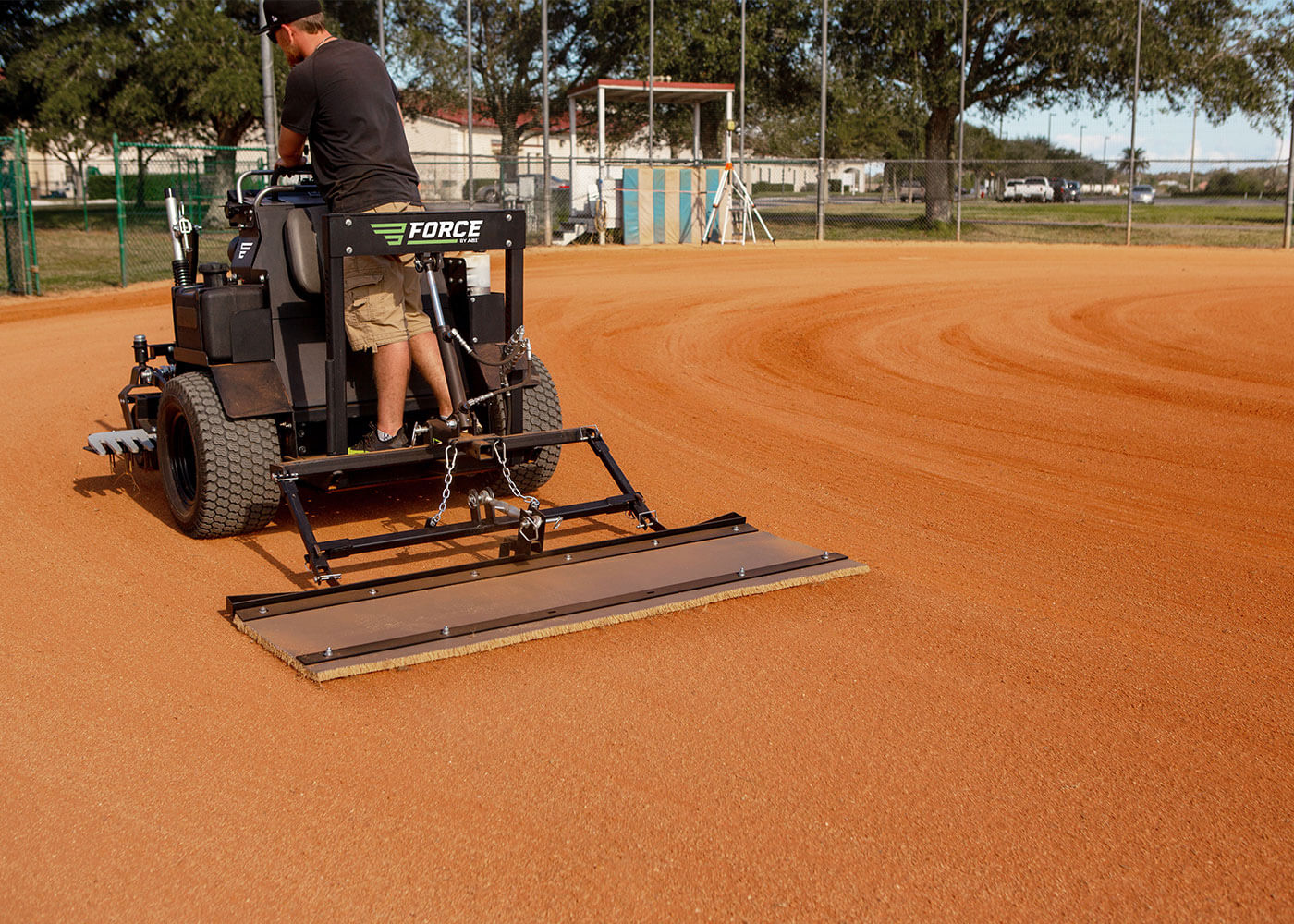

Make The Field Last
Longevity of the field hinges on proper drainage and doing the work to keep the ground maintained. With the Force laser grading it’s easier than ever to direct water and avoid material loss– two elements that play a big part in fields getting worn down.
Step Up Your Infield Game
The Force laser grading system has the reliable precision you need to take your ball field or landscaping maintenance to the next level. Once you use a Force machine for laser grading, there’s no going back.
![Force laser grade complete setup with transmitter and tripod Force laser grade complete setup with transmitter and tripod](https://www.forcebyabi.com/hubfs/Force%20Website/force_laser_grader_step_up_your_game_image.jpg)
Everything you need
Accessibility
The Z-23 is a slim mini grader designed to be uniquely nimble. When you laser grade using a Force machine, you can leave behind the cumbersome equipment.
Labor
You don’t need a team to get perfection. With the Z-23 laser grading system, one operator can level the field, which frees up your crew to focus on the other jobs needed to get your ball field ready.
Budget
With the Z-23 you can eliminate paying pricey contractors to laser grade your ballfields by empowering your crew with the capability to laser grade whenever it’s needed.
Independence
Better fields are just a consultation away. Our technicians will give you in-depth training so you know all you need to know to get perfect results.
![force_laser_grader_everything_you_need_image force_laser_grader_everything_you_need_image](https://www.forcebyabi.com/hubfs/force_laser_grader_everything_you_need_image.jpg)
![Force laser grader doing new construction on softball field Force laser grader doing new construction on softball field](https://www.forcebyabi.com/hubfs/Force%20Website/force_laser_grader_new_construction_image.jpg)
New Construction
Start with finesse by building your ball field to the exact standards you require. When you start with precisely level ground, your players will feel it when they play.
Regular Maintenance
Laser grading touch ups before and after each game keep your ball field in great shape, leaving no room for the quality of the skin to slip.
![Force laser grader heavy renovation on ball field Force laser grader heavy renovation on ball field](https://www.forcebyabi.com/hubfs/Force%20Website/force_laser_grader_heavy_renovation_image.jpg)
Heavy Renovation
When dealing with a ball field that needs some serious renovation, the Force can get the field back to brand new.
All the Bells and Whistles
![internal_hydraulic_control_system internal_hydraulic_control_system](https://www.forcebyabi.com/hubfs/internal_hydraulic_control_system.jpg)
Internal Hydraulic Control System
The hydraulic system on the Z-23 can be built with a manual-operation exclusive or manual/laser-ready configuration. The manual-operation exclusive build is not upgradable after initial factory-build. The laser-ready build configuration can be operated manually without the use of the separately purchased laser electronics should an operator not have them available.
![machine-side-laser-electronics machine-side-laser-electronics](https://www.forcebyabi.com/hubfs/machine-side-laser-electronics.jpg)
Machine-Side Laser Electronics
The available machine-side laser electronics package transforms the Z-23 into an automated laser grading machine. This system is perfectly matched and pre-programmed for plug-and-play operation.
![transmitter-tripod-accessories transmitter-tripod-accessories](https://www.forcebyabi.com/hubfs/transmitter-tripod-accessories.jpg)
Transmitter, Tripod, and Accessories
We offer a range of transmitters, tripods, grade rods, and other laser system accessories to suit the requirements for your job. The Z-23 is also able to be paired with almost any flat, single, or dual-slope laser transmitter you may already own.
Laser Grading Products
The ABI Force is the only infield groomer that has been built from the ground up with the sole purpose of caring for the game. This means more than just grooming the top surface of your infield skins before games. It means properly preparing the whole infield profile so that it is safe and playable.
The available 48" plug aerator for the Force Z-23, mounted to the mid-mount hydraulic lift system, enables 115,000 sq. ft. per hour aerating output. With hydraulic downward-pressure and 400 lbs. of weights, this machine outperforms many dedicated aerators while achieving core depths up to 3 - 1/2". ...
Our proprietary Stealth Blade design offers the perfect subsurface compaction relief. The middle ground between the Profile Blades and Scarifiers, Stealth Blades offer less resistance to cut through thicker-rooted vegetation, with ease. Great for de-weeding an infield skin, or vegetation removal ...
Provides a perfect finish for pro-level infield conditioners. This coated steel lattice evenly floats over the infield surface material to level and redistribute conditioner. Flared edges seamlessly feathers edges, leaving no trails even on sharp turns. The Pro Finisher is designed for use on well ...
The VersiBlade Mini-Box gives the Force Z-23 extra earth-moving muscle and unmatched versatility. It easily sifts through dirt, so operators can do a pass to dig aggressively, decompact the soil, and dislodge rocks. Then they can come back through as needed to gather roots and rocks into a spoil ...
The rear soil finisher attachment will take your soil conditioning and landscape finishing capabilities to a whole new level. With a swivel hookup and our patented H-frame, you can turn without pushing material to the side, so the whole system floats with the machine even in the tightest of turns. ...
Heavy-duty metal flexible mat is ideal for resetting a surface after heavier renovation or grooming
A rigid metal mat with built-in leveling bar is ideal for every-day use and a perfect finish.
A perfect drag for surfaces with more moisture, the coco mat also has a built-in leveling bar.
A less intrusive version of the core aerator, the Slit Aerator pokes slits in the surface, up to 2 inches deep, to assist in overseeding, compaction relief or on the skin to assist in opening the infield surface post-rain. 350 lbs of suitcase weights insure the spikes break up some of the hardest ...
Can be pitched vertically to back blade material from high areas and fill into low areas, it can pull off loose vegetation and debris into piles, and it creates an ideal finish on gravel parking lots and for other heavy dirt work. • Break up clay clods • Abrasion Resistant Steel • Use moving ...
Mini-Box Blade attachment gives the Force Z-23 extra earth-moving muscle and unmatched versatility. The Mini-Box Blade easily mounts to the Force Z-23's unique mid-mount attachment system with drive-over capability and easy spin-on locks. With fingertip control of the powerful hydraulic & ...
The all new VibraFlex 3500-R is a game-changer. Stationed behind the ABI Force, two staggered rows of 1/4" or 1/8" VibraFlex pins that are designed to remove tire compression and air out the field. Simply lower the rear hydraulic lift to engage the VibraFlex 3500-R for nail-dragging and Laser ...
Holds 120 lbs. of material and has an adjustable spread pattern from 4 to 25 feet, adjustable flow, and side deflector. This commercial-grade and independently controlled electric spreader is ideal for precisely broadcasting nearly any type of seed, fertilizer and even some infield surface ...
The Ripping Teeth make easy work of extreme hardpan and vegetation outside of the field. The rippers enable the Force Z-23 to be used to maintain gravel roads, parking lots, and even complete seedbed preparation jobs. These teeth temporarily replace the VibraFlex groomer or Profile Blades™ and are ...
Remove overgrown vegetation from the lips and edges of the infield with the Edger and Clean Up Tool. Attached to the patented mid-mount spring system, this edger can make either a straight cut on the line or can be adjusted to windrow while cutting. A site gauge allows for precision cutting. ...
No need for a wheelbarrow if you have an Force Z-23 with rear Scoop on your trailer. With its hydraulic lift system and electric actuated dump and retraction ability, the Scoop can carry up to 300 pounds of mulch or soil and place it right where you want it.
The Fine Finish Broom creates the perfect finish in both high and low moisture conditions on well-maintained surfaces. This broom is 7' wide and offers 3 rows of bristles. The mounting arms are adjustable to set the exact working angle desired and the broom has an ideal weight for the perfect ...
Used to de-compact the surface without up-ending the surface profile! For light renovation work, the patented Profile Blade™ attachment yields unparalleled de-compaction results by slicing the complete profile of the infield material from 1/2" up to 3 inches under the infield surface. Occasionally ...
Patent-pending attachment that re-imagines infield preparation. Evenly staggered U-pins transfer vibration and flex from front to back, dancing along the infield to shatter surface tension and prepare any engineered soil and surface conditioner. Two models provide the best solution for different ...
Expert Perspective
The laser grading setup is great for huge projects and small projects. I use it to laser grade our infield and warning track — sometimes up to five or six times a year, depending on special events.
